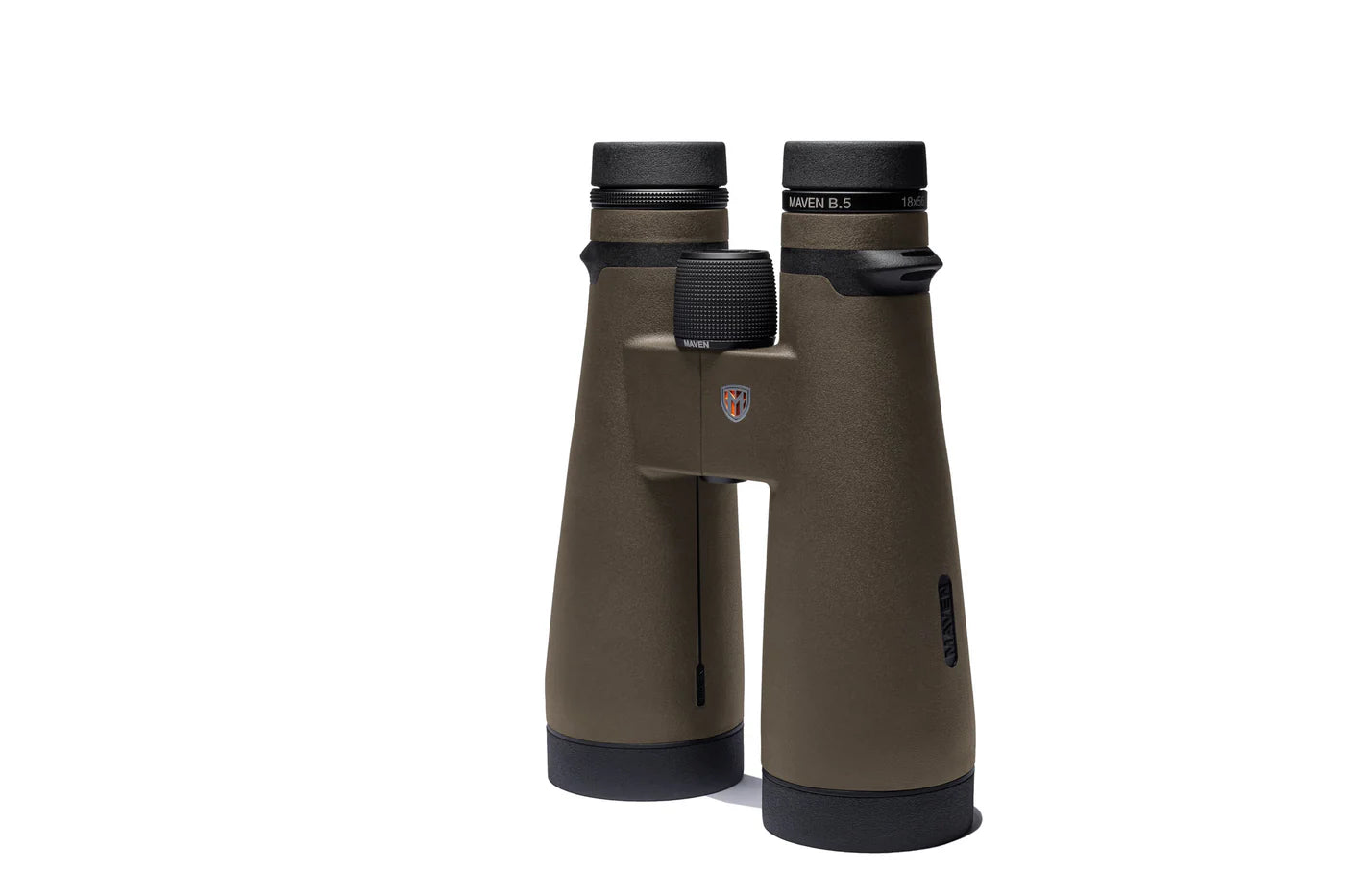

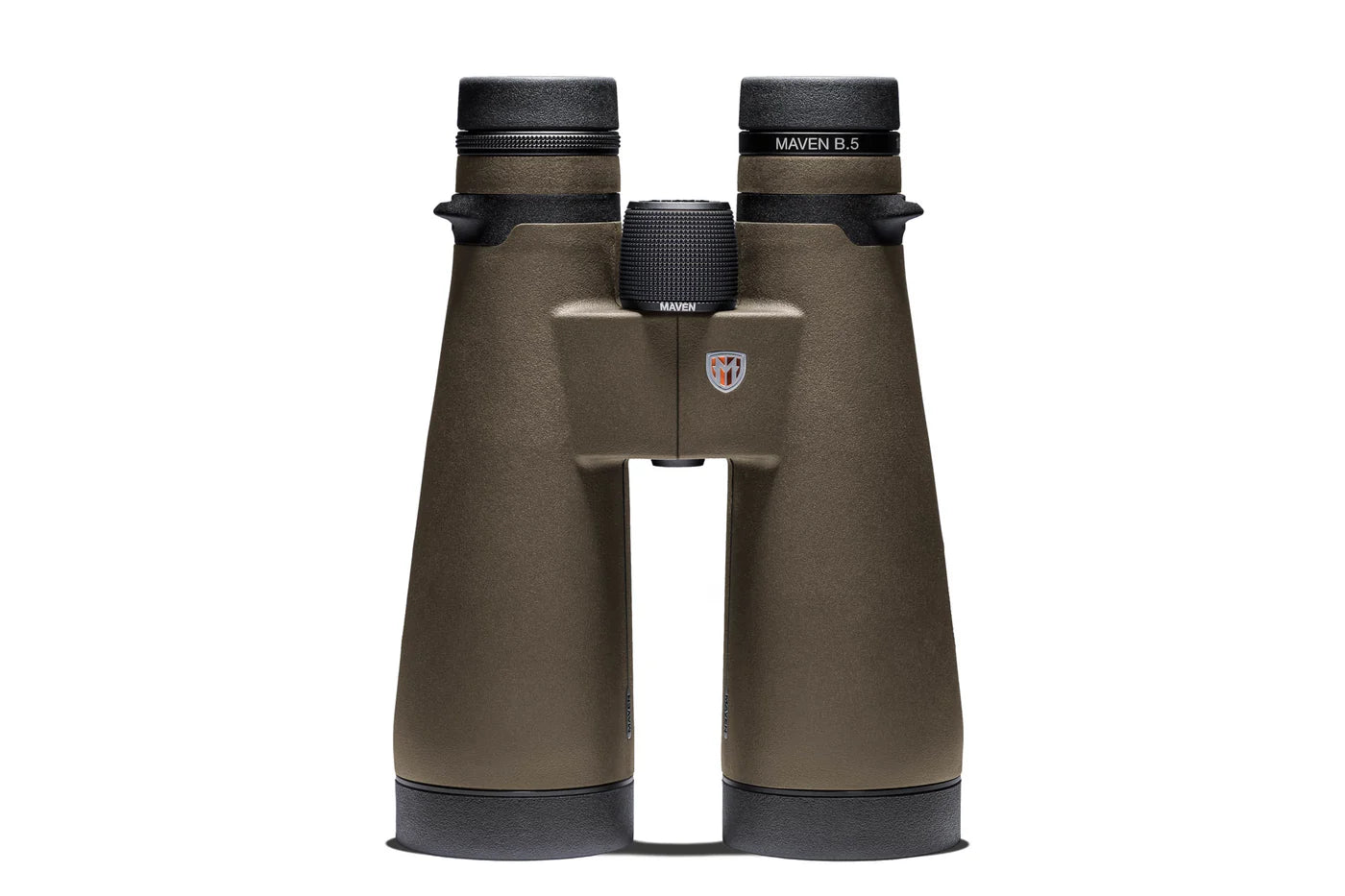

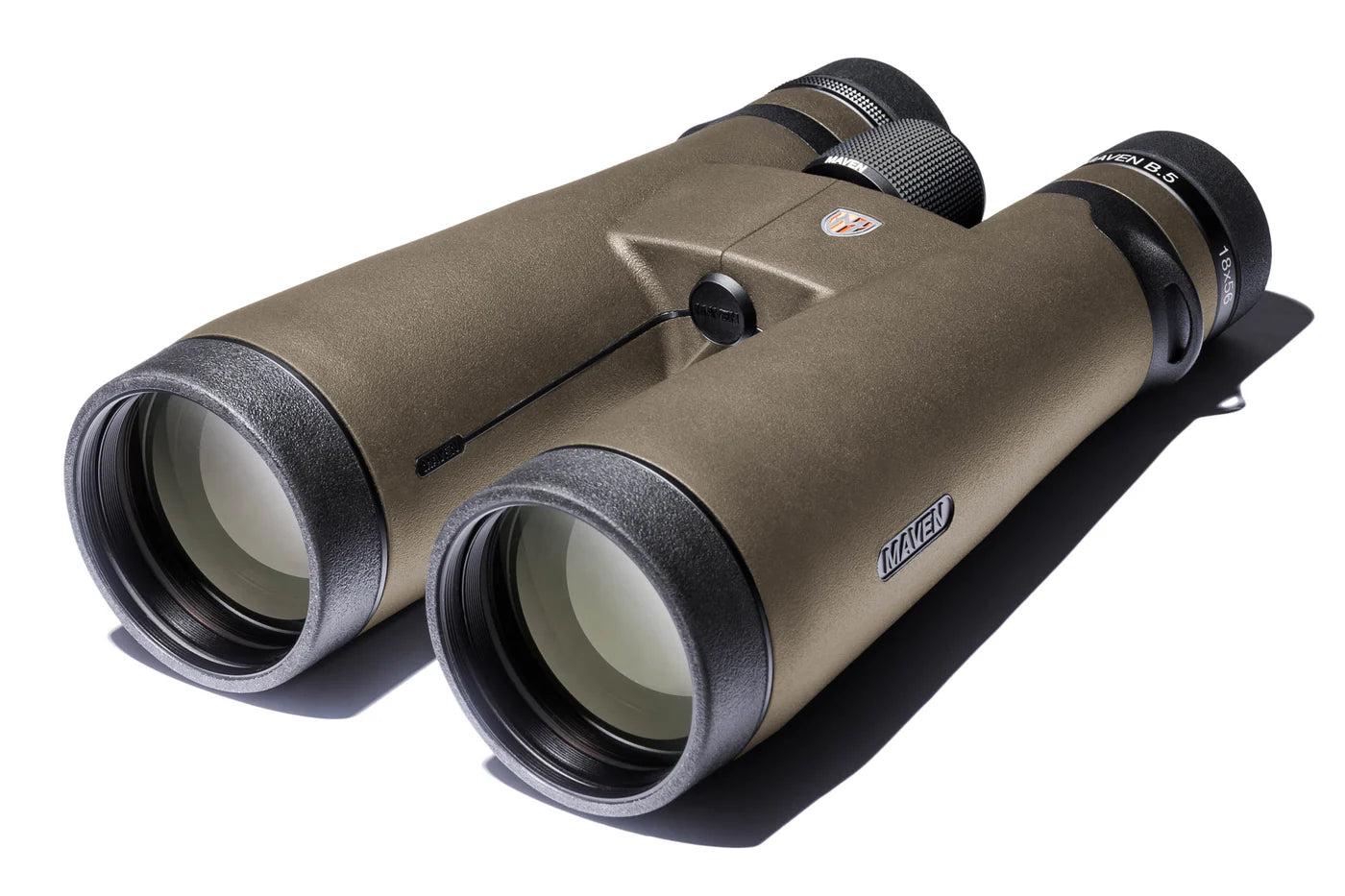

Maven B.5 - 10X56 / 12X56 / 15X56 / 18X56 Binoculars

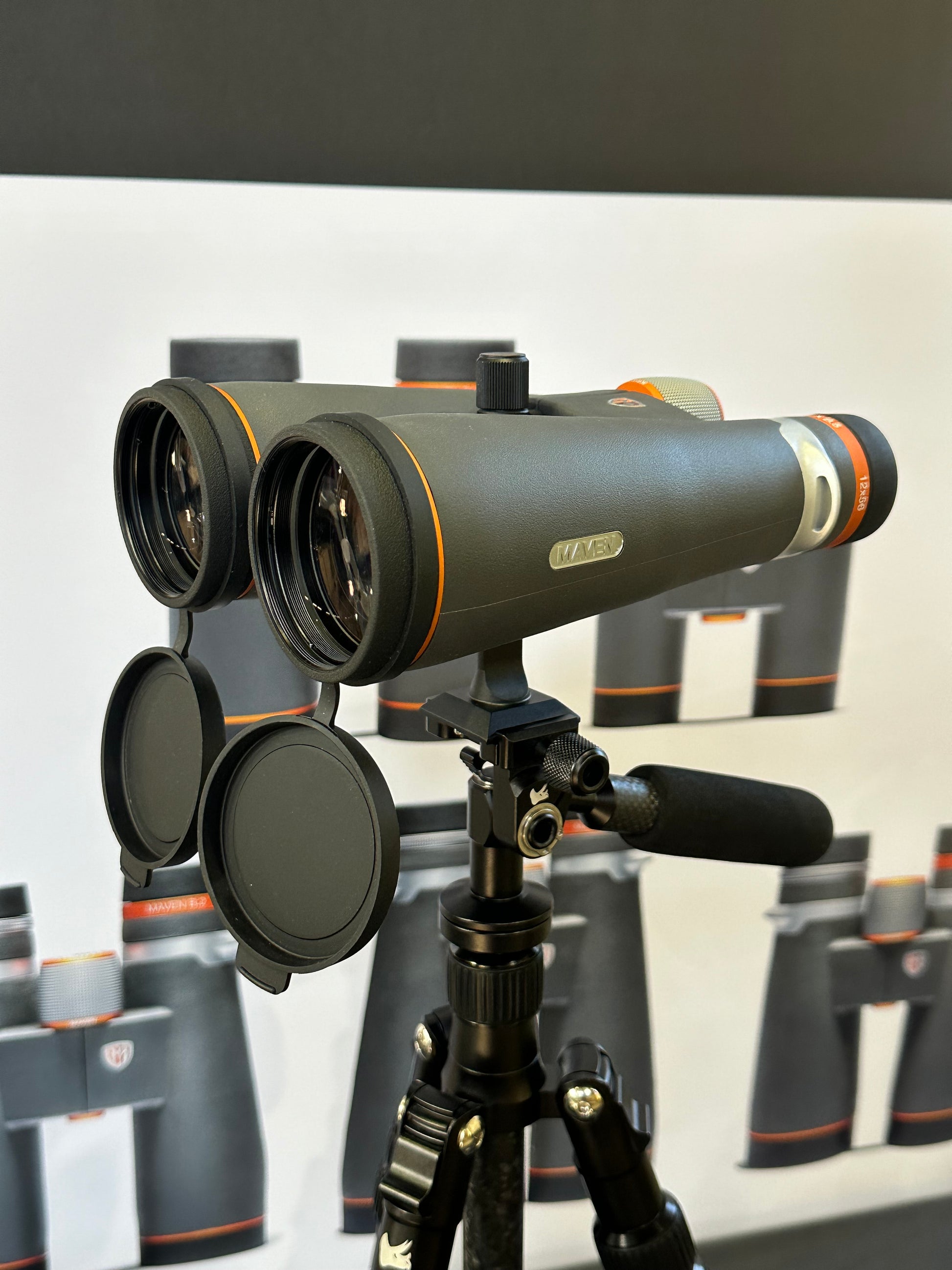

- Tripod adaptability steadies long-range observation.
- Fluorite glass sharpens low-light hunting and birding views.
- 17mm eye relief ensures comfortable long-range observation.
Key points
- Premium Model
- Size 8.2 in.
- Weight 45 oz.
- Fluorite Glass
- Waterproof and Fog Proof
Available on back order
This option is not in stock right now. You can still order it: allow up to 4 weeks, as it ships to us from overseas.
In stock now: 12x / Grey / Orange, 15x / Grey / Orange, 18x / Grey / Orange
Free shipping when you add any second item.
Unconditional lifetime warranty. Faults and accidental damage, with no exclusion list and no claim form. We replace from our own stock and settle it with Maven ourselves. Full terms
Specifications
| Magnification | 10x | 12x | 15x | 18x |
| Obj. lens diameter | 56mm | 56mm | 56mm | 56mm |
| Exit pupil | 5.6mm | 4.7mm | 3.7mm | 3.1mm |
| Field of View (FOV) | 6.5° | 5.5° | 4.5° | 3.7° |
| Apparent FOV (FOV x Power) | 65° | 66° | 67.5° | 66.6° |
| Field of view (ft/1000 yds) | 341 | 289 | 236 | 194 |
| Brightness | 31.4 | 21.8 | 13.9 | 9.6 |
| Light transmission (%) | 92.80% | 92.60% | 92.50% | 92.70% |
| Twilight factor | 23.7 | 25.9 | 29 | 31.7 |
| Multi Position Eyecups Y/N | Yes | Yes | Yes | Yes |
| Eye relief | 19mm | 17.4mm | 17.8mm | 18mm |
| Near focus | 9.8ft | 9.8ft | 9.8ft | 9.8ft |
| Eye width adjustment | 56~75mm | 56~75mm | 56~75mm | 56~75mm |
| Dimension WxHxD | 6.1x8.2x2.6 | 6.1x8.2x2.6 | 6.1x8.2x2.6 | 6.1x8.2x2.6 |
| Weight | 45 oz | 45 oz | 45 oz | 45 oz |
| Lens constr. obj. | 3 groups 4 elements | 3 groups 4 elements | 3 groups 4 elements | 3 groups 4 elements |
| Lens constr. ocular | 4 groups 5 elements | 4 groups 6 elements | 4 groups 6 elements | 4 groups 6 elements |
| Prisms type | Abbe-Koenig | Abbe-Koenig | Abbe-Koenig | Abbe-Koenig |
| Prism reflective coating type | N/A | N/A | N/A | N/A |
| Phase Correction Coating | Yes | Yes | Yes | Yes |
| ED glass | Fluorite | Fluorite | Fluorite | Fluorite |
| Lens coating | Scratch and Oil Resistant | Scratch and Oil Resistant | Scratch and Oil Resistant | Scratch and Oil Resistant |
| Diopter correction (dpt) | more than +/-2 | more than +/-2 | more than +/-2 | more than +/-2 |
| Pressure tested to what pressure | 1m for 30 min. (IPX7) | 1m for 30 min. (IPX7) | 1m for 30 min. (IPX7) | 1m for 30 min. (IPX7) |
| Storage temperature | -40°~158°F | -40°~158°F | -40°~158°F | -40°~158°F |
| Functional temperature | -13°~140°F | -13°~140°F | -13°~140°F | -13°~140°F |
| Frame material | Magnesium | Magnesium | Magnesium | Magnesium |
| Internal gas purged | Nitrogen | Nitrogen | Nitrogen | Nitrogen |
| Tripod Adaptable Y/N | Yes | Yes | Yes | Yes |
| Origin | Japanese components assembled in the US | Japanese components assembled in the US | Japanese components assembled in the US | Japanese components assembled in the US |
Downloads
Built on the foundation of the award-winning B.2 binocular, the large objective B.5 features a small/lighter magnesium frame and Abbe-Koenig prism and is paired with the very same fluorite glass that’s featured in our S Series Spotting Scopes. In both 15x and 18x options, the B.5 is our most powerful binocular and the fluorite glass is a step above ED glass of similar-sized optics. One of the most modern optical systems on the market, this purpose-built binocular is designed to extend your range for those who require increased magnification and the ability to discern detail during those critical low-light periods when covering big, open country. The B.5 is our recommended rig for those who are looking to step up their magnification range, but prefer a lightweight system when carrying a spotting scope is out of the question.
The B.5 also features tack-sharp edge-to-edge clarity, crystal clear glass, considerable eye relief, and a silky focus mechanism.
The Maven B Series represents our elite line of optics, designed to fit your specific needs, delivered for a fraction of comparable binoculars’ costs and stacks up with the most celebrated and expensive binoculars in the world. Whether you choose a stock color unit or configure your own custom-built optic, our modern sportsman-inspired designs are paired with the best available materials and state of the art technology to create an uncompromising optic.
Includes neoprene neck strap, lens caps and double-layered microfiber storage bag.
