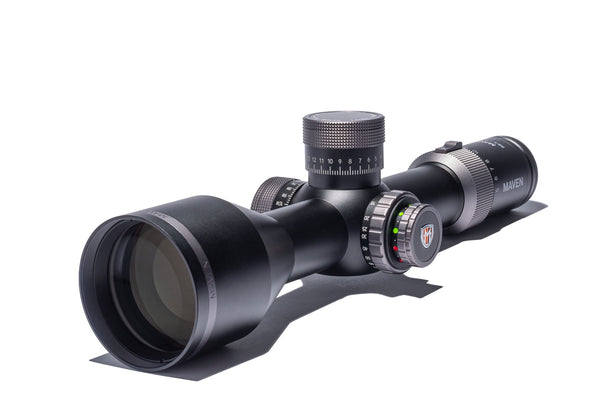

RS.4 - 5-30X56 FFP
RS.4 - 5-30X56 FFP
-
Long range hunters demand a level of precision that is not found in standard hunting and target scopes. The RS.4 Riflescope was specifically designed for those who require maximum precision when minor adjustments can make all the difference.
This purpose-built rifle scope features a first focal plane, 5-30x zoom range, side parallax adjustment, 4 level red and green reticle illumination, and the option for MOA or MIL-based reticles. Mechanical zero stop with positive stops ensure a return to your original zero after every dial. With a broad magnification range and precision dialing capabilities, the RS.4 is our recommended rifle scope for precision rifle shooting competitions and long range enthusiasts.
Just like all rifle scopes in the RS Series, the RS.4 features crystal clear ED glass for tack-sharp clarity, a silky focus mechanism, precision-milled adjustments, solid click detents, and durable anodizing to resist heavy use.
The Maven RS Series represents our elite line of rifle scopes, designed to fit your specific needs, delivered for a fraction of the cost to comparable rifle scopes and stacks up with the most celebrated and expensive scopes in the world. Our modern sportsman inspired designs paired with the best available materials and state of the art technology create an uncompromising optic that meets the demands of the modern hunter.Includes neoprene cover.
Supported by Strelok Pro (our favored ballistics calculator) Download iOS / Android
-
-Premium Model
-Size: 12.8 in.
-Weight: 35.4 oz.
-First Focal Plane
-0.25 MOA/click or 0.1 MRAD/click
-No-Shim Reset-able Zero Stop

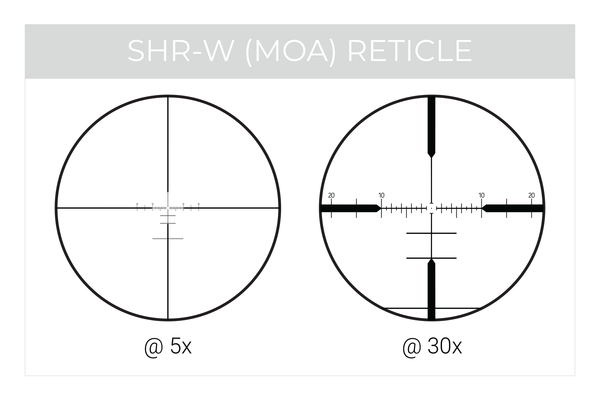

-4 reticle options: SHR-W (MOA), MOA-2 (MOA), SHR-W (MIL), and CFR-MIL (MIL)
-4 Level Red and Green Reticle Illumination
-34mm Tube
-Extra-Low Dispersion ED Glass
-Exceptionally Clear, Bright, High Contrast Image
-Excellent Color Fidelity
-Waterproof and Fog Proof
-Lifetime Warranty
-Direct to Consumer / No Retail Markup -
RS.4 MOA
RS.4 MIL Focal plane First Magnification range 5x - 30x Obj. lens diameter 56mm Tube diameter 34mm / 1.34in Objective outer diameter 65mm Eyepiece outer diameter 42mm Overall length 325mm / 12.79in Weight (without battery) 35.4oz / 1004g Internal adjustment range (MOA/MIL) Travel Elevation 120 MOA 35.5 MIL Travel Windage 50 MOA 14.6 MIL Click value 0.250 MOA 0.1 MIL Adjustment per turret revolution 25 MOA 10 MIL Parallax adjustment 15y - Infinity Exit pupil diameter @5x: 8.9mm @30x: 1.9mm Eye relief @5x: 78-92mm @30x: 86-92mm Field of view @ 100y @5x: 23.3ft @30x: 3.9ft Front/Rear mounting length F: 61mm R: 42mmEffective objective lens diameter @5x: 44.5mm @30x: 56mm Field of view @5x: 4.46° @30x: 0.74° Field of view, apparent @5x: 22° @30x: 22° Diopter correction (dpt) +/-3 Light transmission 91.84% Twilight factor @5x: 16.73 @30x: 40.98Functional temperature -4°~158°F Submersion tightness / waterproof rating 3m depth Gas purged Nitrogen Reticle construction Etched Glass Reticle options MOA-2 / SHR-W SHR-MIL / SHR-W / CFR-MIL Illuminated reticle Y/N Yes Red/Green Origin Made in Japan - Manual (PDF) Comparison Chart (PDF)
